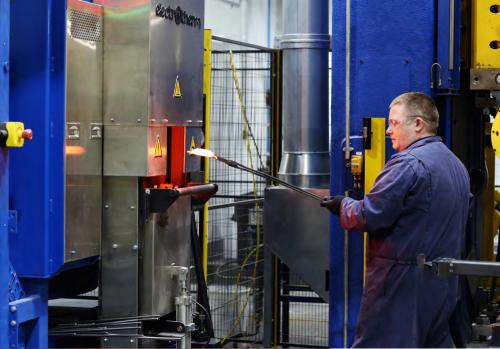

Electrotherm rotary furnace - 5700

Purpose

Israeli built rotary hearth furnace capable of heating samples to 1150°C ±10°C. Stepper motor indexing control of rotary table provides automated integration with Fanuc robots for automated furnace loading/unloading and transfer to press.

Specifications

• - Pre-heating rotary furnace for a continuous precision forging stamping & forming processes
• - Assures temperature uniformity of up to +/-5°C
• - Working temperature range 900-1150°C
• - Suitable for air or protective atmospheres
• - Inner diameter – 1000 mm
• - Inner useful height 350mm
• - Heating power 65kW
• - Volume 350L
• - Oxygen levels at 900°C
• - 0.1% after 35mins/0.05% after 45mins
