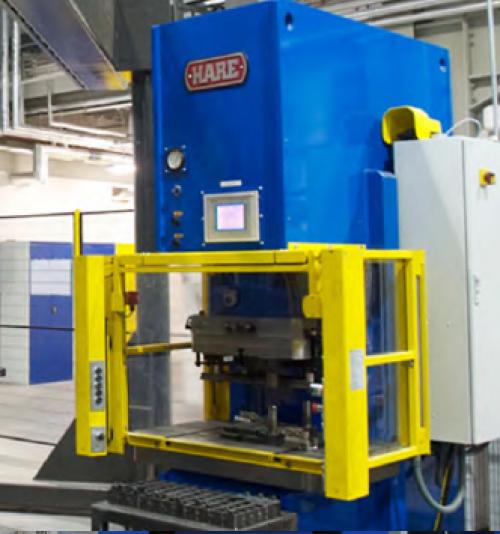

HARE clipping press - Model 63HP

Purpose

The HARE clipping press is designed for trimming flash from forgings. It is a Hydraulic 63 tonne press which is synchronised
for automated operation with 2100 tonne screw press and Electrotherm furnace.

Specifications

• — High speed hydraulic clipping press for removal of forging flash from as-forged parts
• — Max tonnage: 63 T
• — Ram return load: 7.5 T
• — Max daylight 530 mm
• — Max stroke 150 mm
• — Bed dimension: 900 x 580 mm
• — Advance speed 384 mm/sec
• — Pressing speed 33 mm/sec
• — Return speed 309 mm/sec
• — Throat depth 300 mm
• — Tool spigot 50 mm
