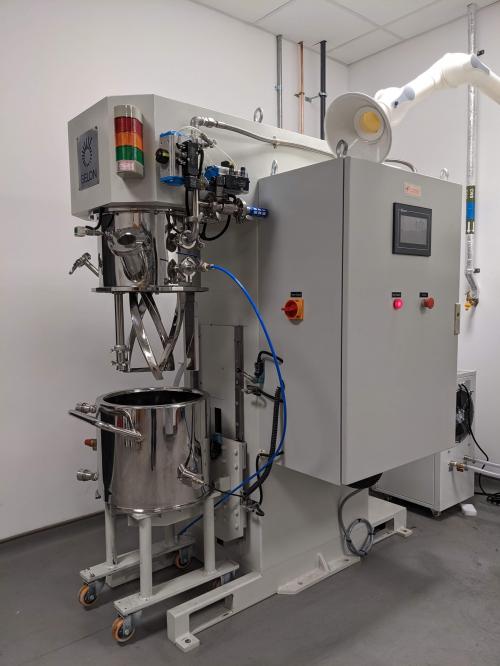

20 L Planetary Vacuum Mixer

We use the mixer for the dispersion and homogenisation of powders to form slurries for coating. It can prepare slurries under either inert atmospheres or a vacuum.

General

Working volume: 8-20 L

Material: SS304

temperature ≤ 8 ?, cooling water flow rate > 10 L / min

Mixing Paddle

Stirring power: 2.2 kW

Rotor speed: 7-79 rpm

Planetary box speed: 4-49 rpm

Dispersion Blades:

Working frequency: 5-50 Hz

Distributed power: 3 kW

Distributed speed: 600-6000 rpm

Scraper:

Scraping panel material: polytetrafluoroethylene

Wall-scraping speed: 4-49 rpm
